Disulfide Bond Animation: Show the Right Connections

A disulfide is a covalent connection between the sulfur atoms of two cysteine residues, meaning cysteine units within a protein chain. A peptide bond instead joins successive amino-acid residues along that chain. These definitions give the scene two different kinds of continuity to preserve. See the EMBL-EBI protein-structure glossary for the underlying terminology.

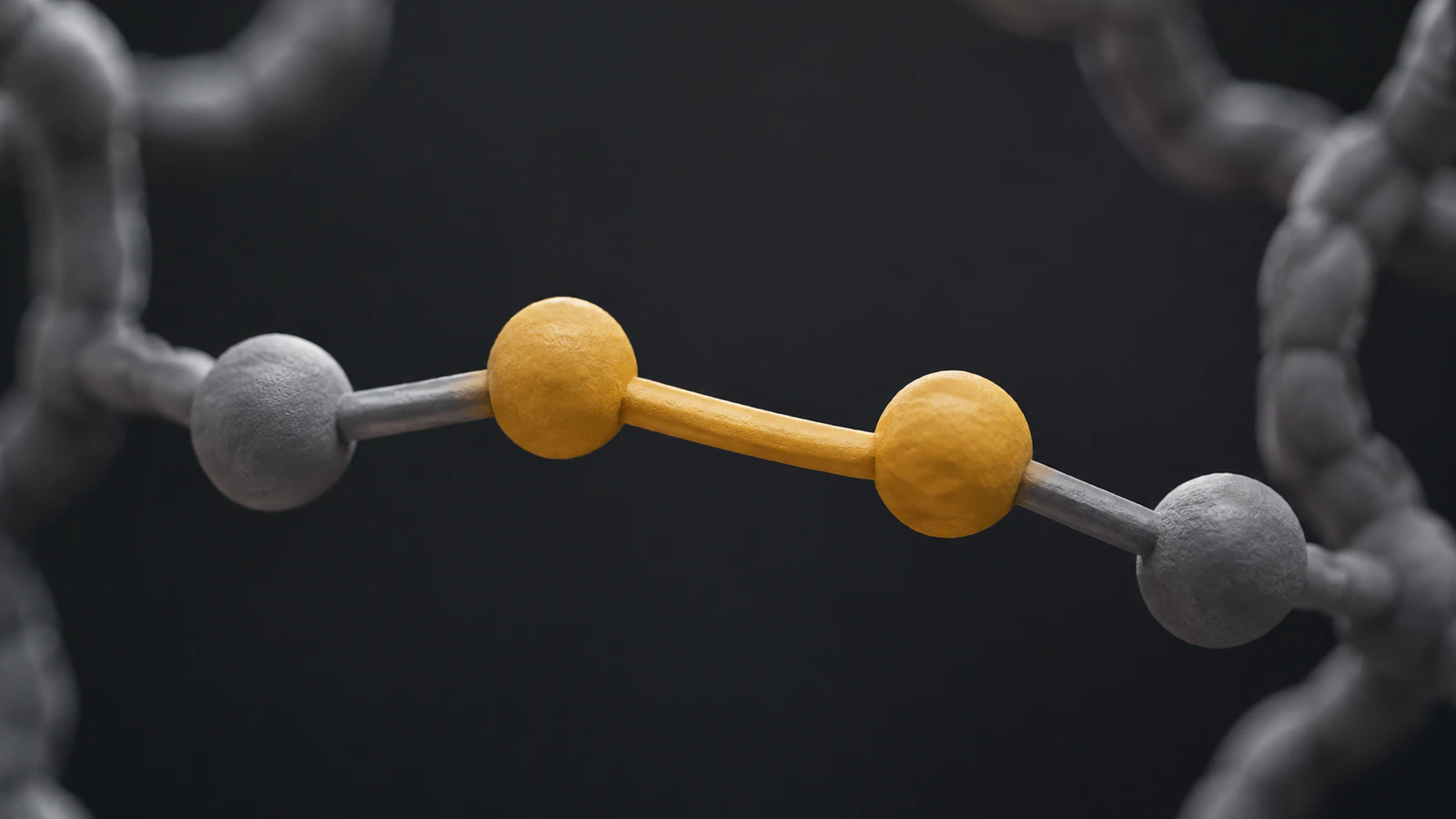

Build a local view that lets the eye travel from one backbone position along its side chain, across the sulfur-to-sulfur bond, and back along the second side chain. Avoid placing the sulfur spheres directly into the ribbon path. That shortcut can make the disulfide appear to replace a section of the backbone, especially when the camera hides the branch points.

For a small screen, reduce surrounding detail before enlarging the bond into a long cable. A tight crop and restrained highlight can expose the connection while keeping the local geometry credible. In a deliberately schematic model, state that bond lengths and atom sizes are illustrative.

An intrachain link connects two positions within one polypeptide chain; an interchain link connects different chains. Establish that distinction in the opening view, before adding motion. Give each chain a consistent visual identity and keep a reference view available while reviewing the close-up. A cross-link should never create uncertainty about how many backbones are present.

In the bond ledger, identify both partners with chain identifier, residue identifier, and atom name from the chosen source. Record any difference between the numbering used in the paper and the numbering in the structure file. Do not assume that two residues sharing a number in different chains represent the same site.

If the brief says only “show the disulfides,” return to the biological question. A general introduction may need one representative link. A mutation explanation may require one exact residue pair. An assembly story may need multiple chains visible together. Those are different scenes, with different review requirements.

For many eukaryotic proteins entering the secretory pathway, the endoplasmic reticulum, or ER, provides the cellular setting for folding and disulfide formation. The relevant interior compartment is the ER lumen. The cytosol is generally reducing, so it should not be used as an interchangeable backdrop for this story. This context is described in The Cell: The Endoplasmic Reticulum.

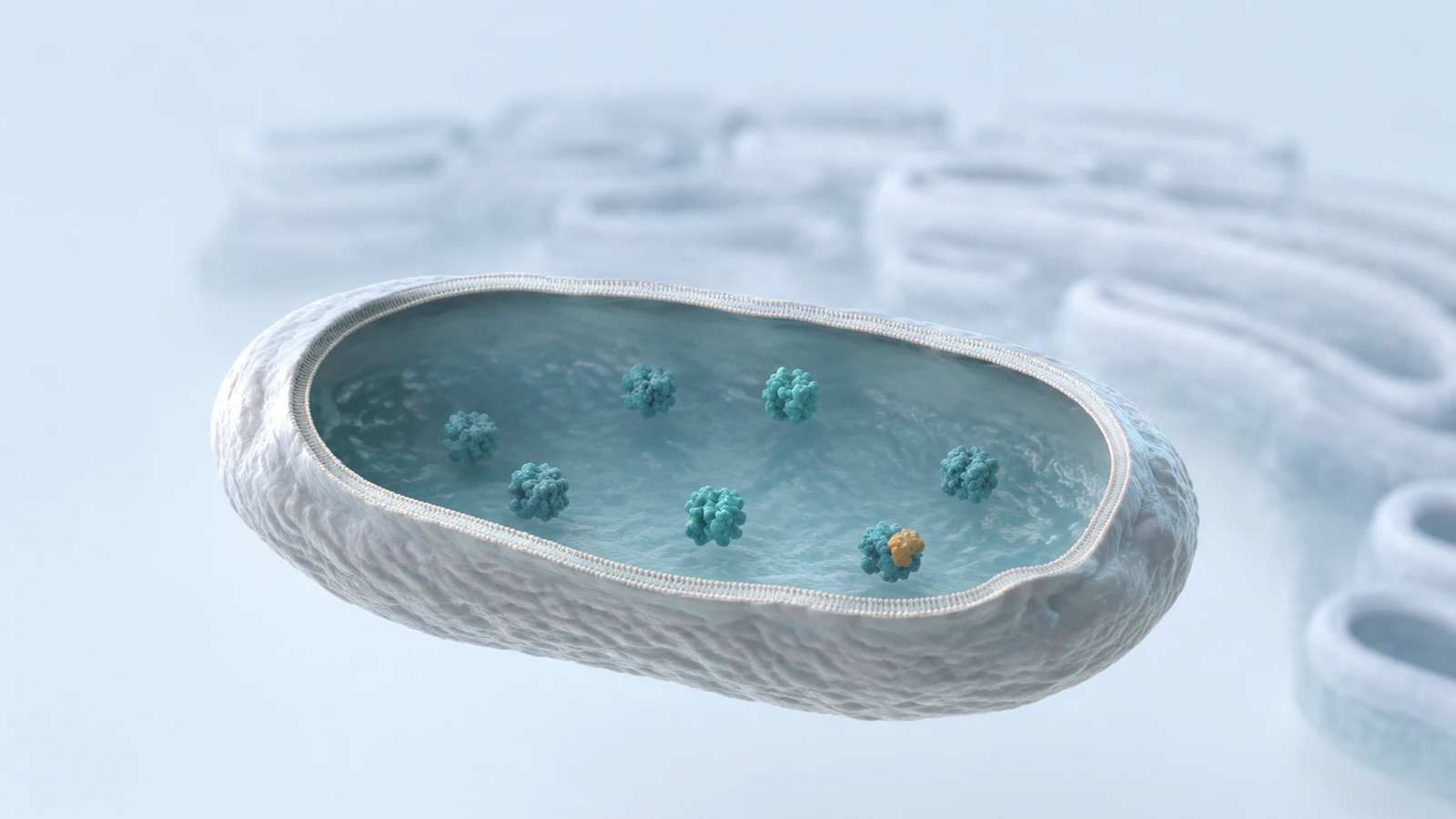

A short establishing shot can show a membrane surrounding the lumen, then move to the protein of interest. A cutaway is useful if its removed wall is recognizable as an illustration choice. Keep nearby molecules sparse enough to preserve the compartment boundary. There is no need to invent concentrations, crowding levels, or a measured spatial arrangement.

If the subject is a purified protein undergoing a laboratory treatment, use that experimental context instead. Do not reuse an ER background simply because it looks biological. Record the system in the brief: cellular folding, a defined sample condition, or a general chemistry explanation.

Protein disulfide isomerase, abbreviated PDI, can catalyze the breaking and re-forming of disulfide connections during protein folding. Its role includes helping cysteine partners rearrange toward a pairing compatible with the folded protein. This established mechanism is described in The Cell: Protein Folding and Processing.

For an introductory animation, a transition between two clearly identified pairing states may be sufficient. If you show the catalytic exchange itself, obtain the substrate-specific evidence and review every transient connection. Adding a PDI-shaped surface beside a protein does not establish a docking pose or prove the route between two structures.

Use a separate annotation in the production notes for every interpolated motion. An observed starting state and an observed endpoint do not automatically supply the path between them. Avoid a neat sequence in which every possible pair forms, fails, and tries again unless that sequence is the intended conceptual analogy and is described as such.

Create one row per connection the audience needs to understand. The row should name the starting partners, the intended endpoint, and the evidence supporting the transition. Add three review fields: keep, change, and unknown. This separates the information your animation must preserve from the motion you are choosing for explanation.

In a generic reduction example, keep means the peptide backbone and side-chain attachments remain continuous. Change means the selected sulfur-to-sulfur connection is absent in the reduced endpoint. Unknown might include the exact conformational response under the chosen conditions. Do not fill that unknown field with a dramatic unfolding effect just to create a satisfying ending.

The ledger also makes revisions manageable. If a reviewer changes the residue assignment, update the row and its affected shots. If the biological endpoint changes, revisit the endpoint first, then adjust the transition. Lighting revisions should not silently alter which atoms or chain segments viewers interpret as connected.

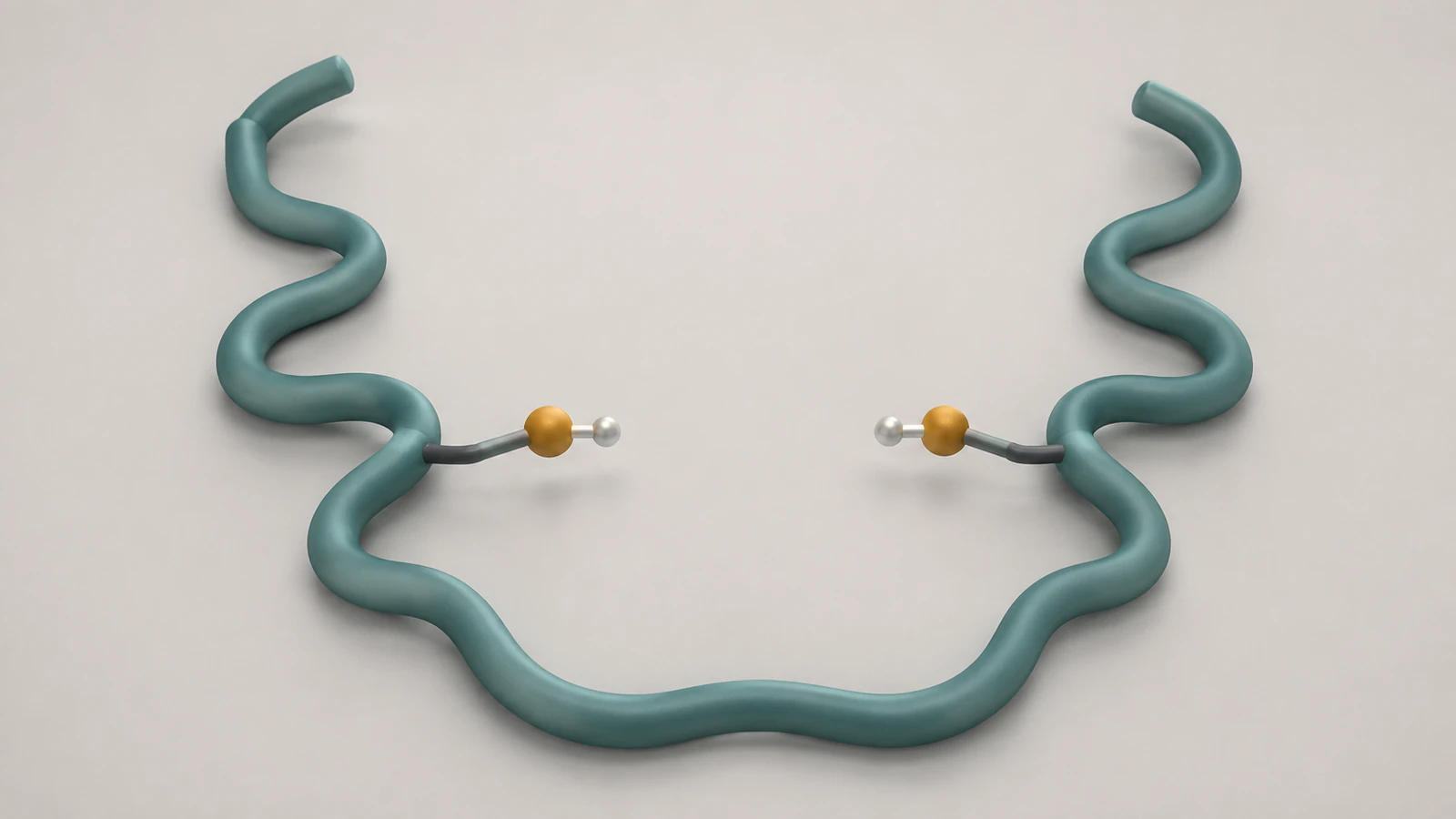

Use a simplified single-chain model for this worked example, not a claim about a particular therapeutic protein. Begin with a visible intrachain cross-link. End with the same continuous backbone and two separated sulfur-containing side groups. The open endpoint drawing is a teaching arrangement, not a prediction that reduction forces every protein into that shape.

Keep the camera position stable during the key connectivity change. If the viewpoint, surface opacity, and bond state all change together, a reviewer cannot tell whether a connection was removed or merely hidden. Make one explanatory change at a time and hold the endpoint long enough to inspect it.

The shot durations belong to your communication plan. Unless a source supplies a relevant measured timescale, do not turn the edit timing into an implied reaction rate. Review the sequence once with narration and once silently; the second pass reveals whether geometry carries the intended distinction.

A familiar molecule can help reviewers orient themselves, but its identity must remain accurate. For example, RCSB PDB entry 4INS describes pig insulin determined by X-ray diffraction at 1.50 angstrom resolution. It lists A-chain and B-chain entities of 21 and 30 residues, respectively, and several assembly choices. It is not automatically the correct asset for a human insulin product story.

For a named structure, record the entry version, selected assembly, chain identifiers, and the actual disulfide annotations you use. Confirm whether the displayed file contains one molecular unit or a larger assembly. Then inspect the selected residues in a molecular viewer rather than inferring bond identity from a thumbnail.

The PDB-to-animation guide covers the broader structure preparation workflow. Here, the extra requirement is a traceable list of cross-links. Neither a crystal structure nor this article’s generated imagery provides a measured reduction trajectory.

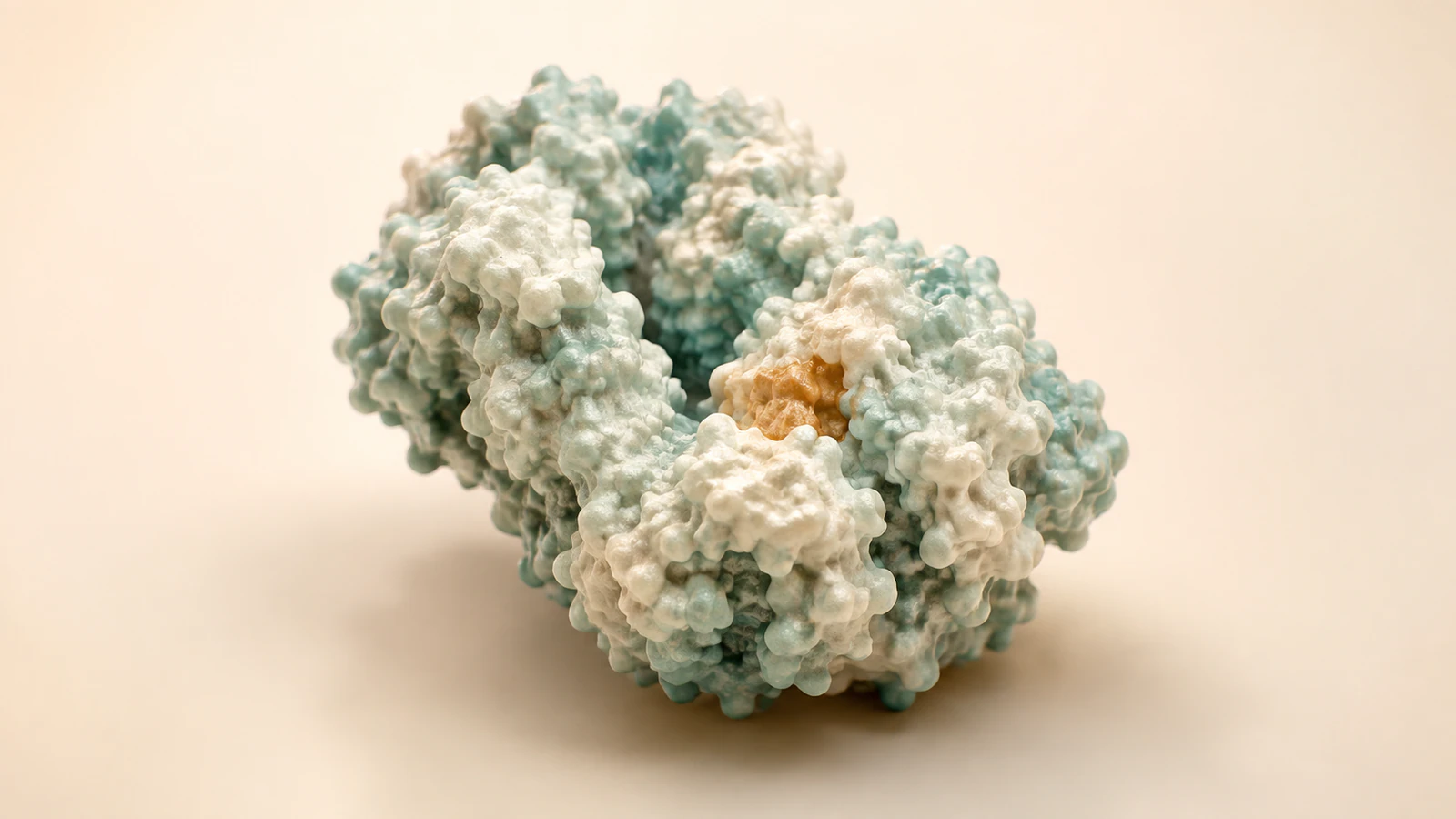

First inspect representation: can the viewer see the branch points and follow each backbone? A molecular surface can establish the overall protein shape but may hide the bond entirely. A local atom view can reveal the chemistry but lose chain context. The surface-versus-ribbon comparison explains how to choose between these views for the question at hand.

Next inspect chemistry against the ledger. Check every endpoint, not only the prettiest middle frame. Look for a sulfur atom detached from its side chain, a cross-link joining the wrong partners, or a backbone segment disappearing under an opacity transition. These are substantive errors even when the final render looks polished.

Finally inspect interpretation. A bond highlight should not imply greater activity, a surface color should not imply a measured redox potential, and a conformational change should not imply a demonstrated functional outcome. Keep any such claims attached to their own evidence rather than letting the visual treatment supply them.
